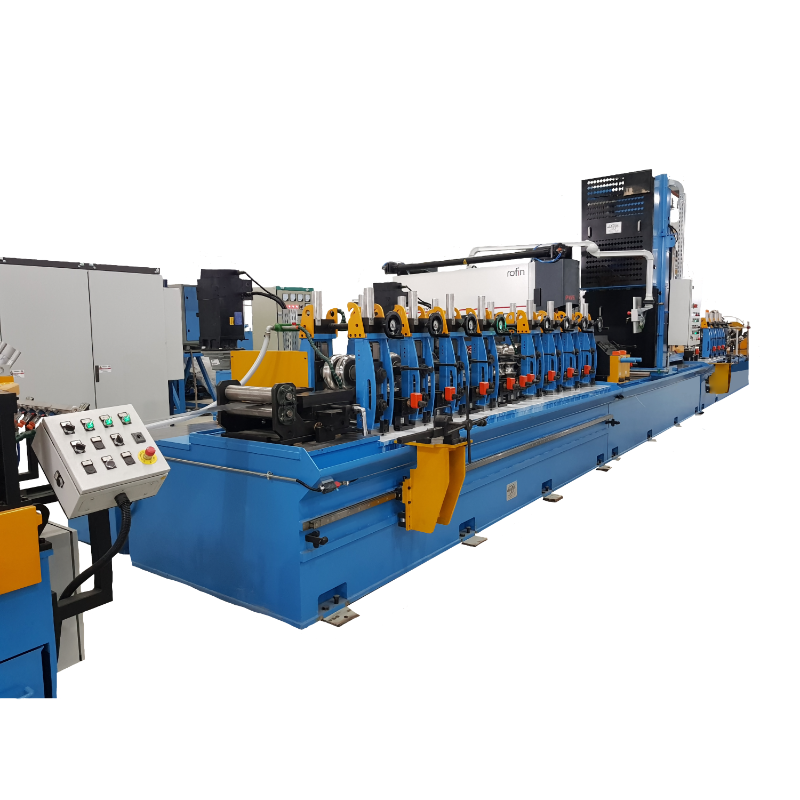

SS Tube Mills

Olimpia 80’s stainless steel (SS) tube mills are engineered to deliver exceptional performance in the production of high-quality stainless-steel tubes and profiles. Designed with cutting-edge technology, these mills ensure precise and efficient processing, accommodating a wide range of dimensions and thicknesses. Olimpia 80’s SS tube mills are built for durability and consistency, making them the ideal choice for manufacturers seeking to produce premium stainless-steel products with minimal downtime and maximum productivity. These systems are available in traditional or cage forming technology, and can work with laser, TIG, or high frequency welders depending on the application.

For details on Olimpia 80 SS Tube Mills

IMPERIAL (US)

METRIC

Standard range can be adapted to specific needs.
	Outer Diameter (in.)		Wall Thickness (in.)		Speed (ft/min)
Model	Min.	Max.	Min.	Max.	Max.
MTM 040 TM	0.4	1.1	0.012	0.047	656
MTM 050 TM	0.394	1.5	0.02	0.1	656
MTM 060 TM	0.5	2.5	0.024	0.118	656
MTM 070 TM	0.63	3	0.035	0.157	590
MTM 080 TM	0.827	3.15	0.039	0.197	492
MTM 090 TM	1	3.5	0.039	0.216	459
MTM 100 TM	1.3	4.5	0.04	0.216	427
MTM 120 TM	1.656	5	0.059	0.236	394
MTM 130 TM	2.5	6.615	0.059	0.279	328
MTM 160 TM	3.5	8.625	0.079	0.315	262
MTM 170 TM	4.5	10	0.1	0.315	200

Standard range can be adapted to specific needs.

Standard range can be adapted to specific needs.
	Outer Diameter (mm)		Wall Thickness (mm)		Speed (m/min)
Model	Min.	Max.	Min.	Max.	Max.
MTM 040 TM	10	28	0.3	1.2	200
MTM 050 TM	10	38	0.5	2.5	200
MTM 060 TM	12	63	0.6	3	200
MTM 070 TM	16	76	0.9	4	180
MTM 080 TM	21	80	1	5	150
MTM 090 TM	25	89	1	5.5	140
MTM 100 TM	33	114	1	5.5	130
MTM 120 TM	42	127	1.5	6	120
MTM 130 TM	63	168	1.5	7	100
MTM 160 TM	89	219	2	8	80
MTM 170 TM	114	254	2.5	8	60

Laser Welded Tubes
TIG Welded Tubes
High Frequency Welded Tubes

Benefits

Built for high-speed production

Quick tool change

List item

Features

5 break down driven stands

3 fin pass driven stands

7 idle forming stands with vertical shaft

Idle edge guide

1 forging head

4 sizing stands with vertical shaft

Outside scarfing unit with double tooling set

Centralized lubrication circuit

Lower shaft position digital readout

Upper shaft position digital readout

Vertical idle shaft position readout

AC or DC drives

Olimpia 80 Carbon Steel Tube Mill General Specifications

IMPERIAL (US)

METRIC

Standard range can be adapted to specific needs.
	Outer Diameter (in.)		Wall Thickness (in.)		Speed (ft/min)
Model	Min.	Max.	Min.	Max.	Max.
MTM 040 TM	0.4	1.1	0.012	0.047	656
MTM 050 TM	0.394	1.5	0.02	0.1	656
MTM 060 TM	0.5	2.5	0.024	0.118	656
MTM 070 TM	0.63	3	0.035	0.157	590
MTM 080 TM	0.827	3.15	0.039	0.197	492
MTM 090 TM	1	3.5	0.039	0.216	459
MTM 100 TM	1.3	4.5	0.04	0.216	427
MTM 120 TM	1.656	5	0.059	0.236	394
MTM 130 TM	2.5	6.615	0.059	0.279	328
MTM 160 TM	3.5	8.625	0.079	0.315	262
MTM 170 TM	4.5	10	0.1	0.315	200

Standard range can be adapted to specific needs.

Standard range can be adapted to specific needs.
	Outer Diameter (mm)		Wall Thickness (mm)		Speed (m/min)
Model	Min.	Max.	Min.	Max.	Max.
MTM 040 TM	10	28	0.3	1.2	200
MTM 050 TM	10	38	0.5	2.5	200
MTM 060 TM	12	63	0.6	3	200
MTM 070 TM	16	76	0.9	4	180
MTM 080 TM	21	80	1	5	150
MTM 090 TM	25	89	1	5.5	140
MTM 100 TM	33	114	1	5.5	130
MTM 120 TM	42	127	1.5	6	120
MTM 130 TM	63	168	1.5	7	100
MTM 160 TM	89	219	2	8	80
MTM 170 TM	114	254	2.5	8	60

Specialty Tube Mills

As a tube mill manufacturer, Olimpia 80 offers specialty tube mills to fit your unique application. Explore the available options, and contact Kent Corporation to request a quote.

See specialty tube mill options

Maintenance Support

Whether you need preventative or emergency maintenance for your tube mill equipment, you can count on Kent Corporation. We’ll be your partner for the long term.

Explore our services

Questions?

Contact Kent Corporation to learn more about our Olimpia 80 tube mills.
